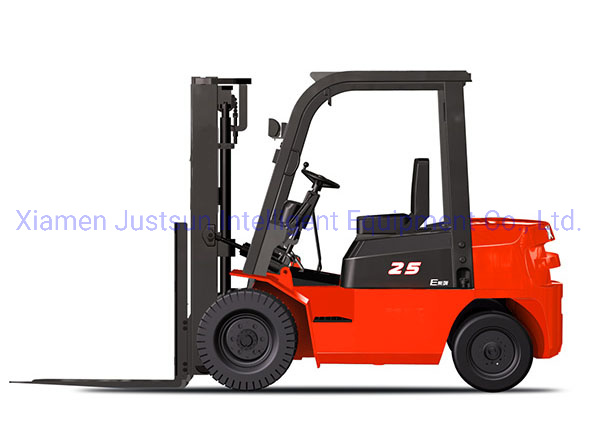

2-3.5ton Forklift with Xgma Brand

Quantity:



Inquire Add to Basket

Cab Location:
Not Adjustable
Type:
Diesel Forklift
Power:
Diesel Engine
Load Capacity:
2t-3.5t
Fuel:
Diesel
Load center:
500mm
Model NO.:
CPCD20
Lift height:
3000mm
Condition:
New
Feature:
Ideal for Warehouse Management
Transport Package:
Nude
Specification:
3650*1155*2070mm
Trademark:
JSIE
Origin:
China
HS Code:
8427209000
Production Capacity:
5000units/Year

Product Description

Product Features
1.The powerful engine, in combination with a stable high-efficiency transmission system, takes full advantage of its power and torque output.

2.All supporting components employ the reliable, technically-mature, market-proven and high-quality hydraulic elements specially designed for various working conditions.

3.The deliberate wide-view mast design focuses on the robustness and high interior quality to ensure safer operation and a wider front view.

4.The unique charm of XGMA forklift is materialized from various details, such as the smart streamline engine hood, compact flexible body and reliable firm overhead guard.

Specification

Description			Unit	CPCD20	CPCD25	CPCD30	CPCD35
Description			Unit	520-DT5	525-DT5	530-DT5	535-DT5
Dimensions	Load centers distance		mm	500	500	500	500
	Lifting height		mm	3000	3000	3000	3000
	Free lifting height		mm	140	140	145	150
	Tilt angle of mast		α/β	6/12	6/12	6/12	6/12
	Total length		mm	3650	3650	3820	3860
	Total width		mm	1155	1155	1220	1220
	Height with mast not lifted		mm	2070	2070	2100	2160
	Fork (L×W×H)		mm	1070×122×40	1070×122×40	1070×125×45	1070×125×50
	Suspension distance(front)		mm	475/485	475/485	475/515	480/555
Performance	Rated load		kg	2000	2500	3000	3500
	Min. turning radius		mm	2200	2260	2400	2420
	Max. running speed (no load)		km/h	20	20	20	20
	Lifting speed (full load)		mm/s	530	530	450	360
	Max. gradeability		°	20	20	20	20
	Deadweight		kg	3440	3765	4270	4550
Tire	Front wheel			7.00-12-12PR	7.00-12-12PR	28x9-15-14PR	28x9-15-14PR
	Rear wheel			6.00-9-10PR	6.00-9-10PR	6.50-10-1OPR	6.50-10-1OPR
	Wheel track	Front	mm	965	965	1000	1000
	Wheel track	Rear	mm	980	980	980	980
	Wheelbase		mm	1650	1650	1760	1760
	Min. ground clearance		mm	110	110	140	140
Engine	Model			C490BPG	C490BPG	C490BPG	C490BPG
	Rated power		kW	40	40	40	40
	Rated speed		rpm	2650	2650	2650	2650
	Max. torque		N.m	160	160	160	160
	Max. speed		rpm	1800-2000	1800-2000	1800-2000	1800-2000
Transmission	Gear (F/R)			1/1	1/1	1/1	1/1
