Automatic
Diesel
31-40t
Euro 4
8×4
≤5
JSIEM3000 SX1315GR456C
385HP
9-10L
Radial
New

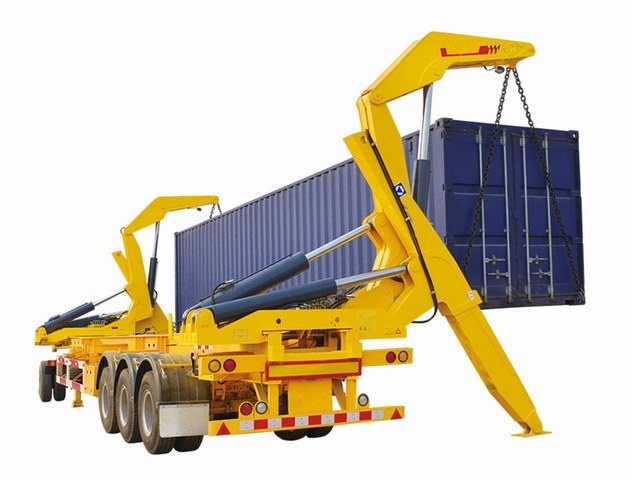

Designed for Container Lifting
Nude
11985x 2496x 3610 mm
JSIE
China
8426419000
1000units/Year
| Specification | ||
| SHACMAN chassis parameters | Overall Dimension | 11985x 2496x 3610 mm |
| Model | JSIEM3000 SX1315GR456C | |
| Driving type | 8X4 LHD | |
| Drive axle | 2 * 16T MAN hub reduction axle | |
| Cab | M3000 extended high-roof cab with air-conditioning and sleeper | |
| Engine | ISM11E4 (385 HP Cummins engine) Euro IV | |
| Transmission | 12JSD180T+QH50 | |
| Gearbox | 12JSD180TA, FAST 12-speed, speed ratio 4.266 | |
| Fuel tank | 400L aluminum alloy fuel tank | |
| Clutch | domestically produced | |
| Front axle | MAN 7.5T | |
| Rear axle | MAN 16T | |
| Steering | ZF Brand | |
| Tire | 12.00R20 (13 + 1) | |
| Color | Optional | |
| XCMG side crane parameters (top loading) | Hoisting weight | 37 tons |
| Hoisting direction | one left crane and one right crane when the vehicle is moving forward | |
| Hoisting container size | 20foot Standard container | |
| Rated working pressure | 25Mpa | |
| Specification | ||
| SHACMAN chassis parameters | Overall Dimension | 11985x 2496x 3610 mm |
| Model | JSIEM3000 SX1315GR456C | |
| Driving type | 8X4 LHD | |
| Drive axle | 2 * 16T MAN hub reduction axle | |
| Cab | M3000 extended high-roof cab with air-conditioning and sleeper | |
| Engine | ISM11E4 (385 HP Cummins engine) Euro IV | |
| Transmission | 12JSD180T+QH50 | |
| Gearbox | 12JSD180TA, FAST 12-speed, speed ratio 4.266 | |
| Fuel tank | 400L aluminum alloy fuel tank | |
| Clutch | domestically produced | |
| Front axle | MAN 7.5T | |
| Rear axle | MAN 16T | |
| Steering | ZF Brand | |
| Tire | 12.00R20 (13 + 1) | |
| Color | Optional | |
| XCMG side crane parameters (top loading) | Hoisting weight | 37 tons |
| Hoisting direction | one left crane and one right crane when the vehicle is moving forward | |
| Hoisting container size | 20foot Standard container | |
| Rated working pressure | 25Mpa | |
