Semi-Trailer
Heavy Duty
Not Self-dumping
No ABS Anti-lock Braking System
Steel
New
Carry Fuel Fuel, &Oil, &Diesel& Drink Water& Milk
Nude
11000*2500*3700mm(30, 000L)
JSIE
China
8716399000
2500units/Year

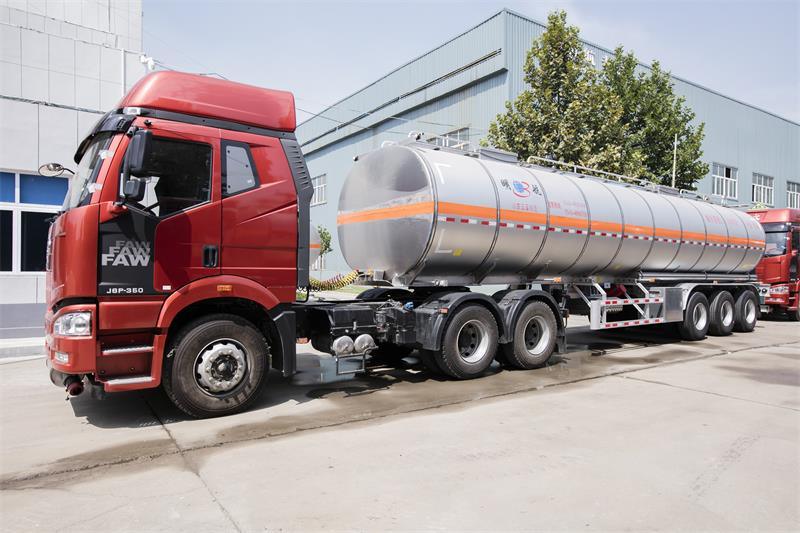

| 30,000L-45,000L 3-axle Tank Semi-trailer | |||
| Feature: | Carry Fuel, Oil, Diesel, Drink water, Milk, Beer and other chemical liquid | ||
| Dimension(L*W*H): | 11000*2500*3700mm(30,000L) 11700*2500*3750mm(40,000L) | ||
| Model | JS9350GRY | ||
| Material: | Carbon Steel | Stainless Steel | Aluminum |
| Compartment: | 3-6 | ||
| Capacity(kgs): | 30,000L-45,000L | ||
| Tare weight(kgs): | 10,000-11,000kgs | 10,000-11,000kgs | 6,000-7,000kgs |
| Kingpin | The world-famous JOST brand bolt-in/welded type 3.5"/2" | ||
| Landing gear | JOST brand two-speed manual operation 19" | ||
| Tire size | 11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5 | ||
| Rim size | 8.25*22.5,9.00*22.5,11.75*22.5 | ||
| Axle | Original BPW-12T/ FUWA-13T | ||
| Leafs spring | Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension | ||
| Brake system | One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector. | ||
| Manhole: | Aluminum alloy ø500mm(20") manhole with aluminum alloy cover; with breather valve; | ||
| Discharge Valve | Aluminum alloy discharge valve with cover | ||

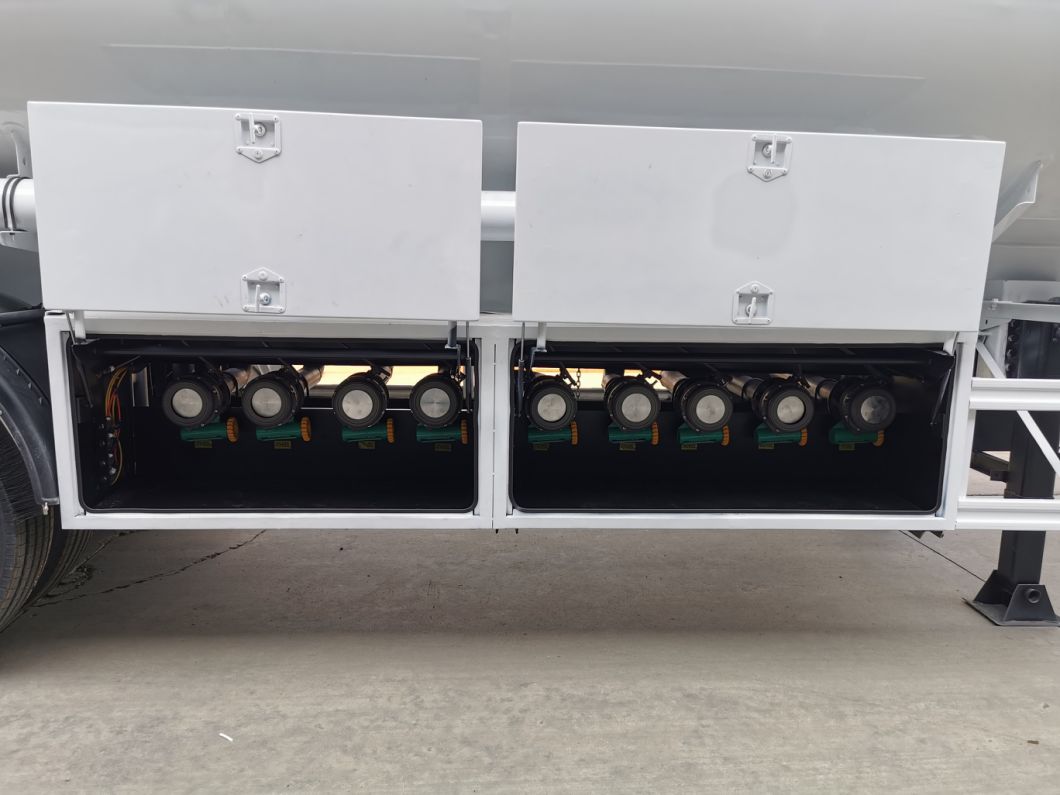

| Foot Valve | Pneumatic control DN80 aluminum alloy foot valves | ||
| Pneumatic Control system | 1set Pneumatic Control combined switch 1unit emergency switch | ||
| Discharge Hose | 2 units 3"×6M factory PVC hose with quick coupling on both ends | ||
| Vapor Recovery & Overfill system | Optional | ||

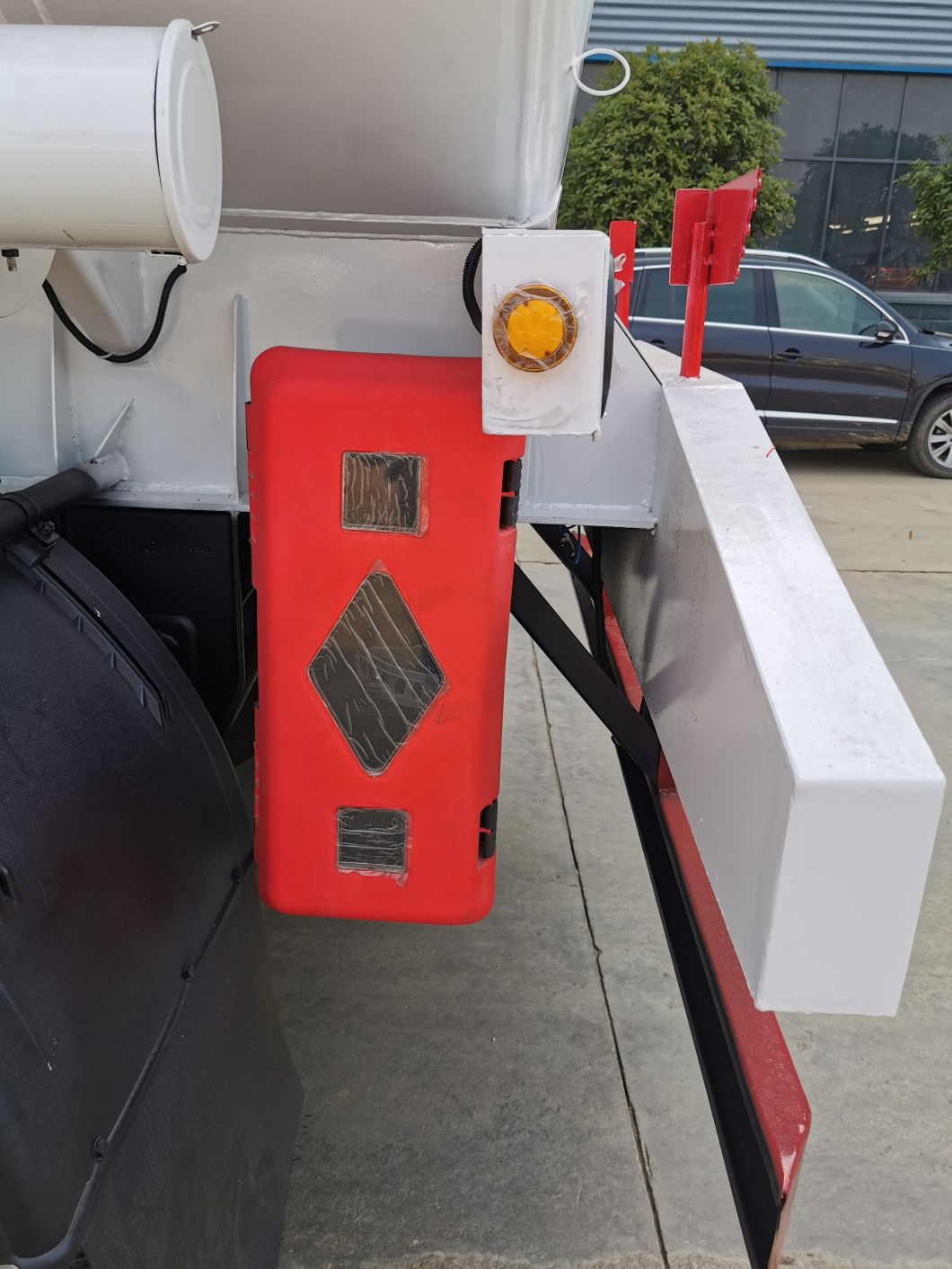

| Fire Extinguisher Carrier | 2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside | ||

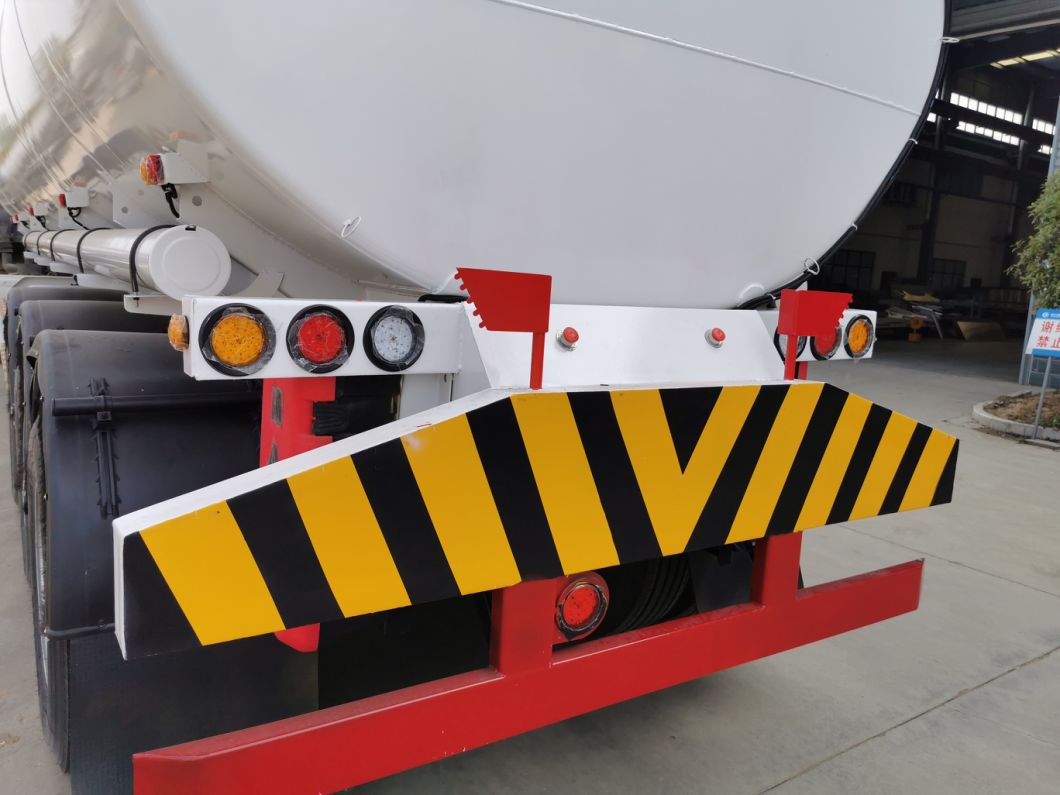

| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable | ||
| Prime & Topcoat painting | S.A.2.5 standard sandblasting ;Zinc-rich & Polyurethane painting | ||
| We can build the trailers according to customer's design and requirement | |||
| 30,000L-45,000L 3-axle Tank Semi-trailer | |||
| Feature: | Carry Fuel, Oil, Diesel, Drink water, Milk, Beer and other chemical liquid | ||
| Dimension(L*W*H): | 11000*2500*3700mm(30,000L) 11700*2500*3750mm(40,000L) | ||
| Model | JS9350GRY | ||
| Material: | Carbon Steel | Stainless Steel | Aluminum |
| Compartment: | 3-6 | ||
| Capacity(kgs): | 30,000L-45,000L | ||
| Tare weight(kgs): | 10,000-11,000kgs | 10,000-11,000kgs | 6,000-7,000kgs |
| Kingpin | The world-famous JOST brand bolt-in/welded type 3.5"/2" | ||
| Landing gear | JOST brand two-speed manual operation 19" | ||
| Tire size | 11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5 | ||
| Rim size | 8.25*22.5,9.00*22.5,11.75*22.5 | ||
| Axle | Original BPW-12T/ FUWA-13T | ||
| Leafs spring | Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension | ||
| Brake system | One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector. | ||
| Manhole: | Aluminum alloy ø500mm(20") manhole with aluminum alloy cover; with breather valve; | ||
| Discharge Valve | Aluminum alloy discharge valve with cover | ||
| Foot Valve | Pneumatic control DN80 aluminum alloy foot valves | ||
| Pneumatic Control system | 1set Pneumatic Control combined switch 1unit emergency switch | ||
| Discharge Hose | 2 units 3"×6M factory PVC hose with quick coupling on both ends | ||
| Vapor Recovery & Overfill system | Optional | ||
| Fire Extinguisher Carrier | 2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside | ||
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable | ||
| Prime & Topcoat painting | S.A.2.5 standard sandblasting ;Zinc-rich & Polyurethane painting | ||
| We can build the trailers according to customer's design and requirement | |||
