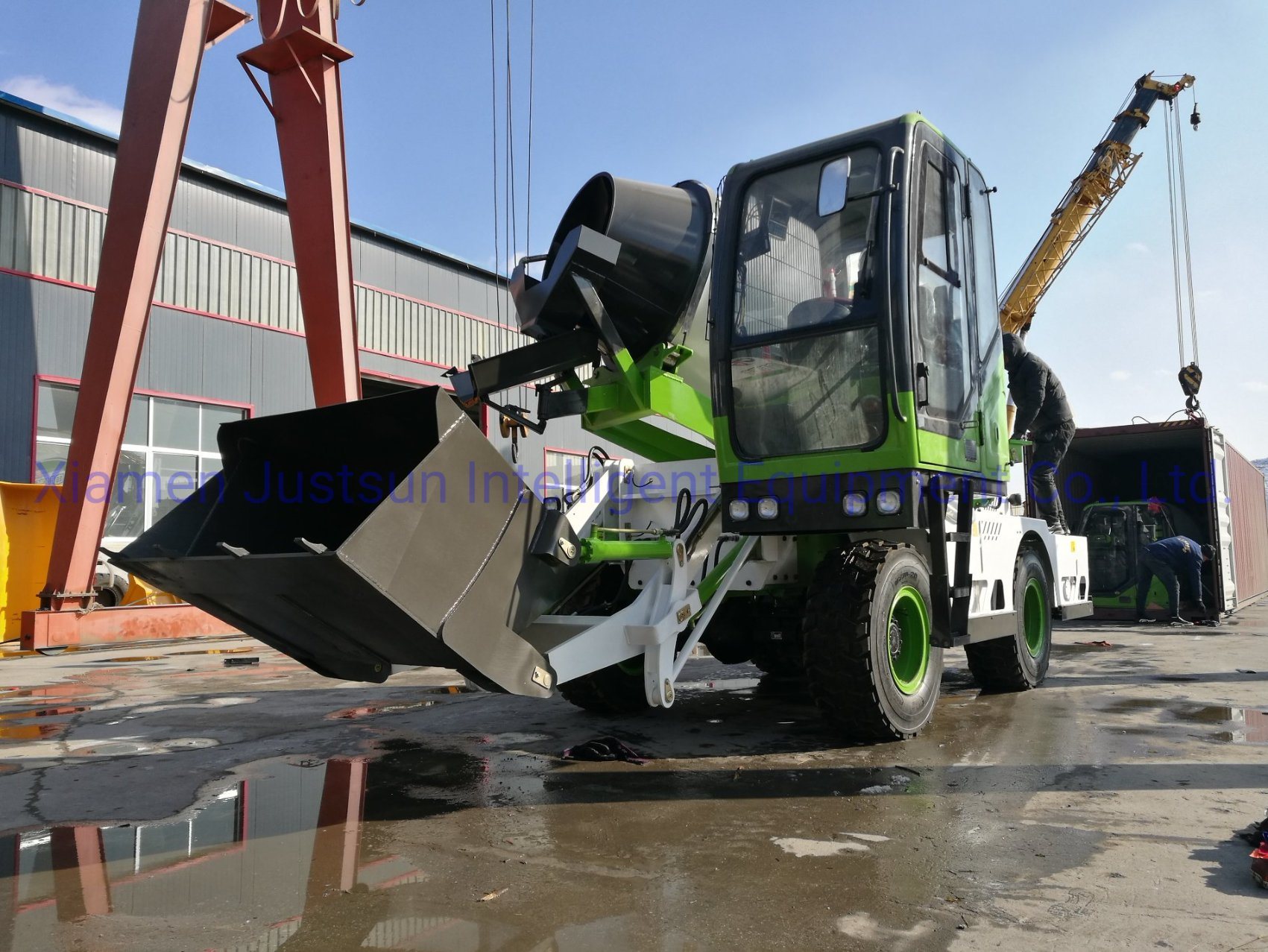

4m³ Self Loading Concrete Mixer Truck

Quantity:



Inquire Add to Basket

Type:
Concrete Mixing Truck
Shotcrete Type:
Wet
Machining Process:
Hydraulic
Structure:
Rotor Type
Productivity:
25m²/h
Feeding Height:
4350mm
Model NO.:
4m3
Vibrating Amplitude:
Without
Condition:
New
Color:
White
Transport Package:
Nude Packing
Specification:
7640x2870x4750mm
Trademark:
JSIE
Origin:
China
HS Code:
8705400000
Production Capacity:
1000units/Year

Product Description

Data of complete
Overall dimension(LxWxH):7640x2870x4750mm
Wheelbase:2480mm
Curb weight:9000kg
Drive form: Torque converter
Top speed.: 35km/h
Maximum gradeability: 30
Minimum turning radius; 4800mm
Minimum ground clearance:330mm
.
Engine
Model: Yuchai YCD4122G
Rated power:85kw

Transmission case
Model: ZL-280 power shift transmission
Gear: 4 forward 4 back
Conventional parameters
Equipment model: JBC40

Maintain the amount of annotation
Fuel tank:230L
Total hydraulic system capacity : 170L
Oil: 16L

Parameters of hydraulic system
Reducer: KY07-5-J
Pump: Parker pump
Motor:HA2FM56/ 61W-VTD527

Water supply system parameters
Water tank capacity: 660L
Water supply mode: time relay

Stiring and unloading
The double cone roller has a double helical agitating screw and a convex bottom
Dum geometry capacity .6000L Drum rotation speed: .__ .17 pm Concrete yield. 4.0m' 1 can
The reaction frame mounted on the heavy duty' spherical saddle can be hydraulically rotated by 290 and automatically locked by a hydraulic brake Drum rotation is achieved via a gear pump and a plunger hydraulic motor in an open circuit with a manual electrical valve in the operator's room and at the rear of the mixer. The drum rises to a horizontal position through two double acting jacks. The unloading chute is tilted by manually adjustable handle and can be rotated by 90",but cannot be synchronized with the churning drum tilting operation, Removable chutes ensure unloading directly through the hopper, Two chute extensions are provided as standard.

Mixer Truck Concrete 4m3
