Special Type
Hydraulic Transmission
Crawler
Front Discharge
74~147kw
ISO9001: 2000
LD160C
New
Yellow
Suitable for The Most Demanding Applications.
Nude
6665x3900x3032mm
JSIE
China
8429119000
1000unit/Year

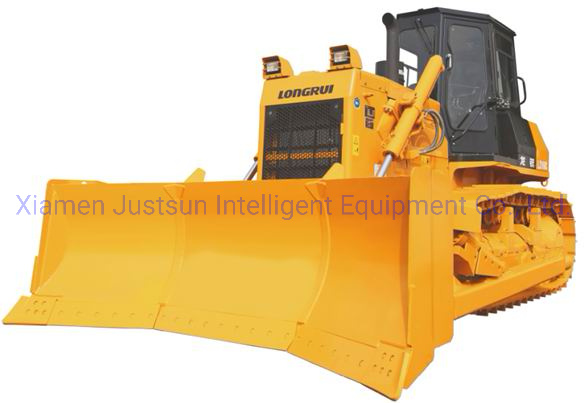

| Model | LD160C (Coal Bulldozer) |
| Engine | |
| Rated power (Kw) | 131 |
| Engine brand | WeiChai Power-Emmission Stage II |
| Model No. | WD10G178E25 |
| Rated revolution (rpm) | 1850rpm |
| Max. torque (N.m) | 890N.m |
| Type of Engine | Inline, Direct injection, Water cooling, Four stroke, Supercharged intercool. |
| Cylinder number | 6 |
| Fuel capacity (L) | 300L |
| Piston Displacement (L) | 9.726 |
| Blade | |
| Blade type | Coal Blade |
| Blade length x height (mm) | 3900*1200 |
| Dozing capacity (m³) | 5 |
| Max. lift above ground (mm) | 1095 |
| Max. drop below ground (mm) | 540 |
| The shanks of scarifier (pcs) | 3 |
| Crawler | |
| Width of track shoes (mm) | 560 |
| Pitch (mm) | 203 |
| Track gauge (mm) | 1880 |
| Carrier rollers (each side) | 2 |
| Track rollers (each side) | 6 |
| Ground pressure (Mpa) | 0.056 |
| Min. ground clearance (mm) | 385 |
| Gradeability (°) | 30° |
| Overall dimensions | |
| Length (mm) | 5427/6665 with ripper |
| Width (mm) | 3900 |
| Height (mm) | 3032 |
| Weight (T) | 17.5 |
| Travel speed | FORWARD: 3.29 \ 5.82 \ 9.63km/h Reverse: 4.28 \ 7.59 \ 12.53km/h |
| Model | LD160C (Coal Bulldozer) |
| Engine | |
| Rated power (Kw) | 131 |
| Engine brand | WeiChai Power-Emmission Stage II |
| Model No. | WD10G178E25 |
| Rated revolution (rpm) | 1850rpm |
| Max. torque (N.m) | 890N.m |
| Type of Engine | Inline, Direct injection, Water cooling, Four stroke, Supercharged intercool. |
| Cylinder number | 6 |
| Fuel capacity (L) | 300L |
| Piston Displacement (L) | 9.726 |
| Blade | |
| Blade type | Coal Blade |
| Blade length x height (mm) | 3900*1200 |
| Dozing capacity (m³) | 5 |
| Max. lift above ground (mm) | 1095 |
| Max. drop below ground (mm) | 540 |
| The shanks of scarifier (pcs) | 3 |
| Crawler | |
| Width of track shoes (mm) | 560 |
| Pitch (mm) | 203 |
| Track gauge (mm) | 1880 |
| Carrier rollers (each side) | 2 |
| Track rollers (each side) | 6 |
| Ground pressure (Mpa) | 0.056 |
| Min. ground clearance (mm) | 385 |
| Gradeability (°) | 30° |
| Overall dimensions | |
| Length (mm) | 5427/6665 with ripper |
| Width (mm) | 3900 |
| Height (mm) | 3032 |
| Weight (T) | 17.5 |
| Travel speed | FORWARD: 3.29 \ 5.82 \ 9.63km/h Reverse: 4.28 \ 7.59 \ 12.53km/h |
