| Quantity: | |
|---|---|
Semi-Trailer
50t-60t
5615 mm + 1310 mm+1310mm
1840mm
Heavy Duty
Mechanical Suspension
FTW9409ZZX
U Shape
3
12+1spare
Self-dumping
No ABS Anti-lock Braking System
Steel
New
Carry Sand,&Stone,&Mine& Garbage and So on
Nude
9700*2480*3300mm (27CBM) 10100*2480*3300mm(33CBM)
JSIE
China
8716399000
5000units/Year

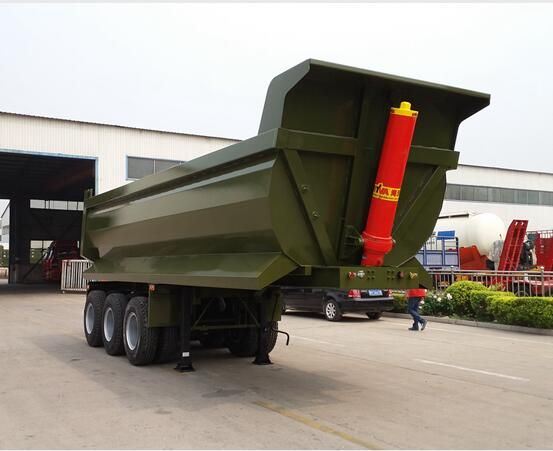

| 27cbm-40cbm 3-axle tipper semi-trailer | |
| Feature: | Carry Sand, Stone, Mine, Garbage and so on |
| Dimension(L*W*H): | 9700*2480*3300mm (27CBM) 10100*2480*3300mm(33CBM) |
| Main frame: | Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process |
| The thickness of body | Side wall: 6mm Bottom floor: 8mm |
| Model: | JS9600TJZT |
| Capacity(CBM): | 27CBM-40CBM |
| Tare weight(kgs): | 9,300kgs(27cbm) 10,500kgs(33cbm) |
| Kingpin: | The world-famous JOST brand bolt-in/welded type 3.5"/2" |
| Landing gear: | JOST brand two-speed manual operation 19" |
| Tire size: | 11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5 |
| Rim size: | 8.25*22.5,9.00*22.5,11.75*22.5 |
| Axle: | Original BPW-12T/ FUWA-13T |
| Suspension | Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension |
| Brake system: | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
| Hydraulic system | Hyva brand |
| Painting: | S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting |
| Accessory: | One tool box; one set of standard tool |
| We can build the trailers according to customer's design and requirement | |
| 27cbm-40cbm 3-axle tipper semi-trailer | |
| Feature: | Carry Sand, Stone, Mine, Garbage and so on |
| Dimension(L*W*H): | 9700*2480*3300mm (27CBM) 10100*2480*3300mm(33CBM) |
| Main frame: | Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process |
| The thickness of body | Side wall: 6mm Bottom floor: 8mm |
| Model: | JS9600TJZT |
| Capacity(CBM): | 27CBM-40CBM |
| Tare weight(kgs): | 9,300kgs(27cbm) 10,500kgs(33cbm) |
| Kingpin: | The world-famous JOST brand bolt-in/welded type 3.5"/2" |
| Landing gear: | JOST brand two-speed manual operation 19" |
| Tire size: | 11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5 |
| Rim size: | 8.25*22.5,9.00*22.5,11.75*22.5 |
| Axle: | Original BPW-12T/ FUWA-13T |
| Suspension | Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension |
| Brake system: | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
| Hydraulic system | Hyva brand |
| Painting: | S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting |
| Accessory: | One tool box; one set of standard tool |
| We can build the trailers according to customer's design and requirement | |
